Name: 64-port FXS/FXO over 1*E1 PCM Multiplexer
Brand: KDS Telecom
Availability: InStock

KDS-E1P64 is a specialized E1 Transmission Equipment developed by our company, based on independently researched Ultra Large Scale Integrated Circuits.

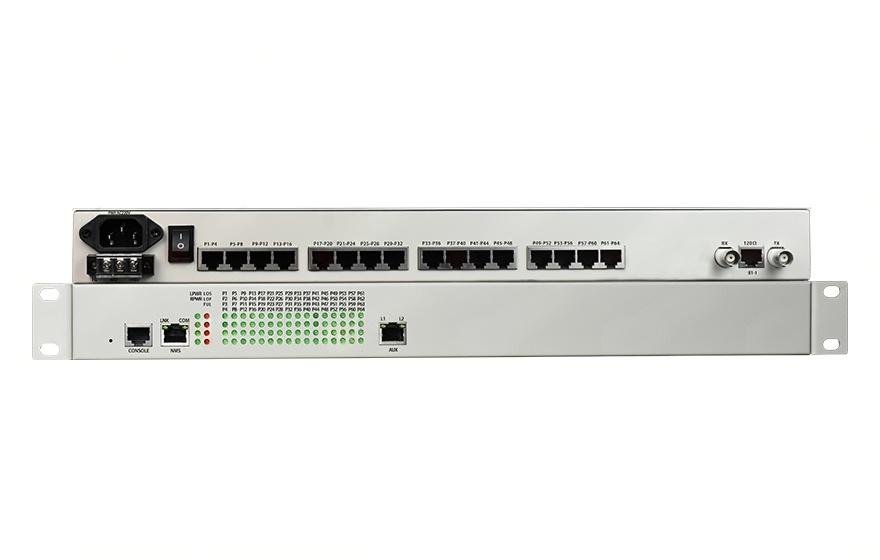

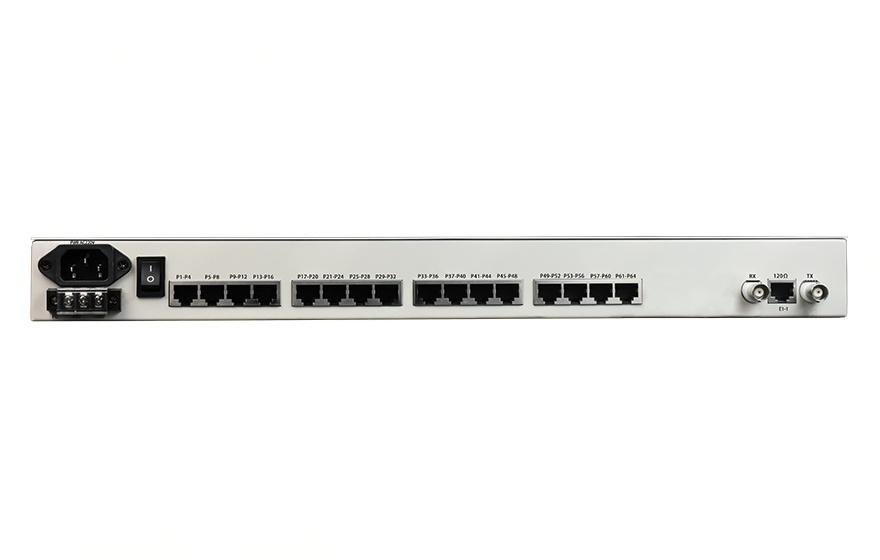

KDS-E1P64 provides 64 telephone channels (FXS/FXO) interfaces and uses 1 E1 transmission interface to carry the services. The product is designed for 1U 19-inch rack-mount installation.

KDS-E1P64 features an internal automatic time slot allocation function: a time slot is automatically allocated when a phone goes off-hook and is promptly released when on-hook. It allows for a maximum of 31 simultaneous phone calls, offering extremely flexible application configuration.

KDS-E1P64 core circuitry employs a full digital design, features comprehensive alarm functionality, and ensures stable and reliable operation, low power consumption, high integration, and compact size.

1. Core Technology & Design: Utilizes proprietary intellectual property (IP) high-performance integrated circuits; the device is designed for 19-inch 1U rack-mount installation.
2. E1 Interface Standard: The E1 interface fully complies with ITU-T G.703 recommendations, featuring built-in all-digital clock recovery and smooth phase-locked loop (PLL) technology.
3. High Capacity Access: Provides 1 to 64 voice channels, requiring only 1 E1 transmission interface to carry services.
4. Intelligent Time Slot Allocation: Features internal automatic time slot allocation, allowing for a maximum of 31 simultaneous phone calls, with corresponding indicator lights to display the online status.
5. Rich Voice Interfaces: Flexible support for FXO/FXS/Two-Four Wire E&M/Two-Four Wire Audio/Magneto Telephone interfaces; FXO interfaces connect to PBX, and FXS interfaces connect to user telephones.
6. Core Service Functionality: Full-channel support for Caller ID, Reverse Polarity Billing, and Fax functionality.
7. Routing & Interoperability: Supports automatic routing for inter-site dialing (mutual number dialing between sites).
8. NMS & Operations: Optional SNMP or Console network management; features comprehensive alarm functionality, ensuring stable and reliable unit operation.
9. Power Redundancy & Polarity Protection: Offers multiple power supply options and supports dual power backup modes such as AC+DC, AC+AC, and DC+DC; DC power supplies feature automatic polarity detection, eliminating the need to distinguish polarity during installation.
10. Safety & Characteristics: Telephone interfaces include built-in high-standard lightning protection, meeting the GB/T17626.5 (6KV) standard; the unit is characterized by low power consumption, high integration, and compact size.

◆ E1 Interface

Standard Compliance	Compliant with G.703 Recommendation
Rate	2048 Kb ± 50 ppm
Code Type	HDB3
Impedance	Unbalanced 75 Ω/ Balanced 120 Ω (Unbalanced interface requires coaxial adapter for 75-2/3 coaxial cable)
Jitter Characteristics	Meets G.742, G.823 Recommendations
Input Attenuation	0 dBm ～ 6dBm

◆ FXS Subscriber Interface

Ringing Voltage	75 V
Ringing Frequency	25 Hz
2-Wire Input Impedance	600Ω (Off-hook)
Return Loss	20 dB

◆ FXO Trunk Interface

Ringing Detection Voltage	35 V
Ringing Detection Frequency	17 Hz - 60 Hz
2-Wire Input Impedance	600Ω (Off-hook)
Return Loss	20 dB

◆ E&M 2/4 Wire Audio Interface

E&M Type	TYPE V
E-Wire Max Current	22 mA; Saturation Voltage: 3 V
M-Wire Constant Current	7 mA; Min Detection Current: 5 mA
A/D Gain	0 dB
D/A Gain	0 dB
2/4 Wire Input Impedance	600Ω

◆ Magneto Telephone Interface

Ringing Detection Voltage	75 V
Ringing Detection Frequency	25 Hz
2-Wire Input Impedance	600Ω (Off-hook)
Return Loss	20 dB

◆ Electrical and Mechanical Characteristics

System Power	AC 180 V∼260 V; DC −48 V; DC +24 V
Power Consumption	≤50 W
Dimensions/Form Factor	485(L)×200(W)×45(H) mm (1U 19-inch Rack-mount)
Net Weight	3.8kg/unit

◆ Environmental Index

Operating Temperature	−10∘C∼+60∘C
Storage Temperature	−40∘C∼+85∘C
Operating Humidity	0%∼95% (Non-condensing)
MTBF (Mean Time Between Failures)	>100,000 hours
